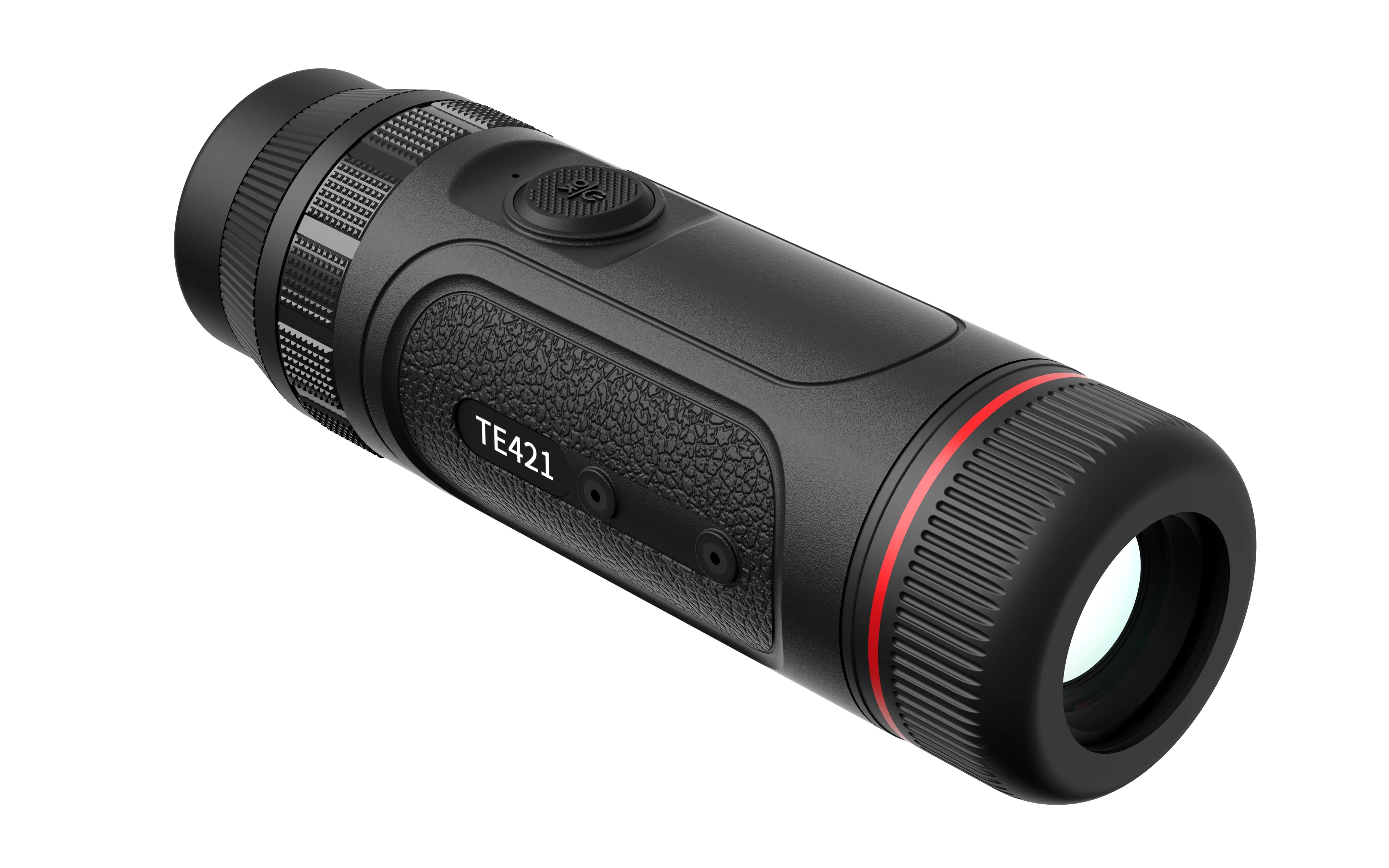

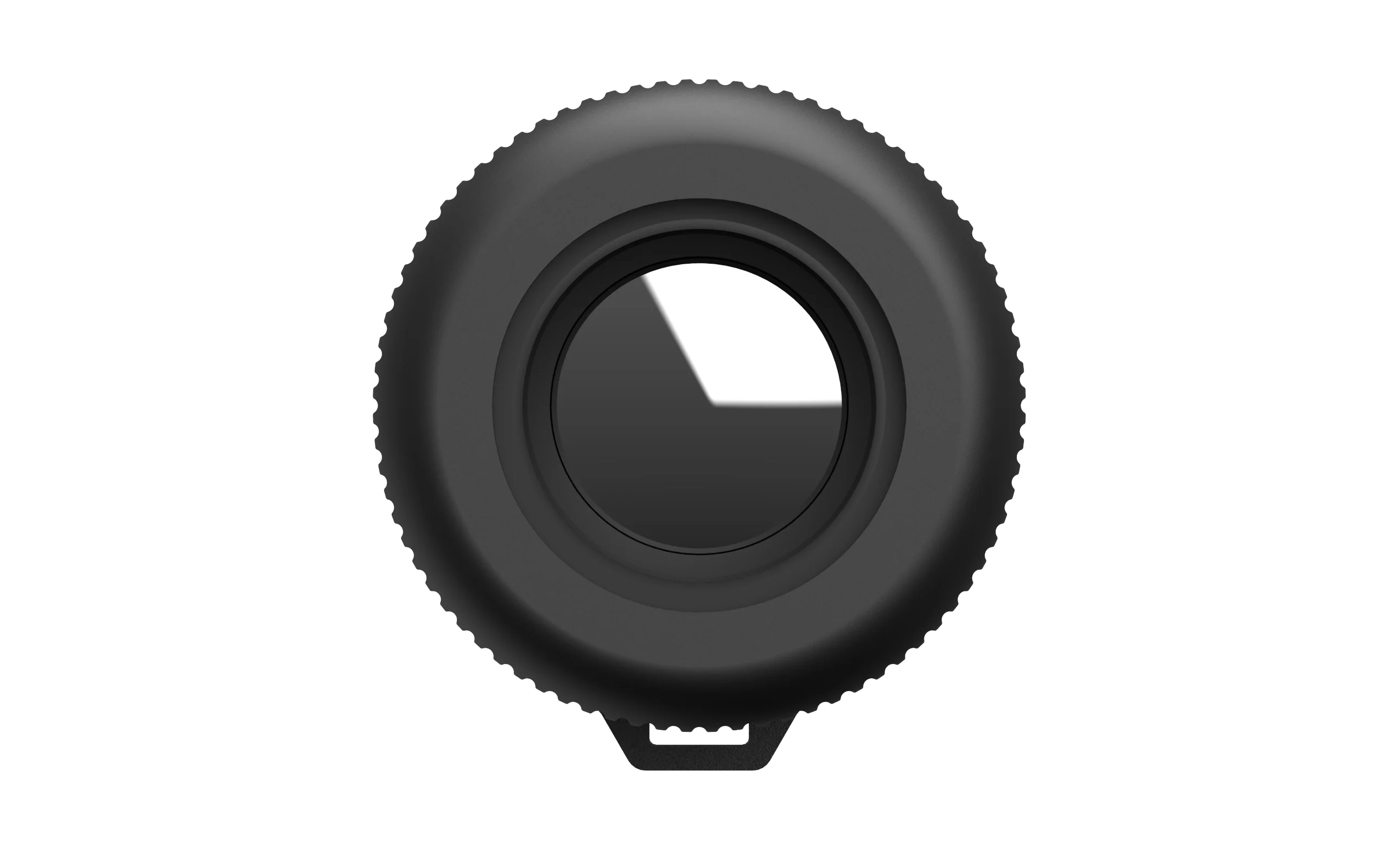

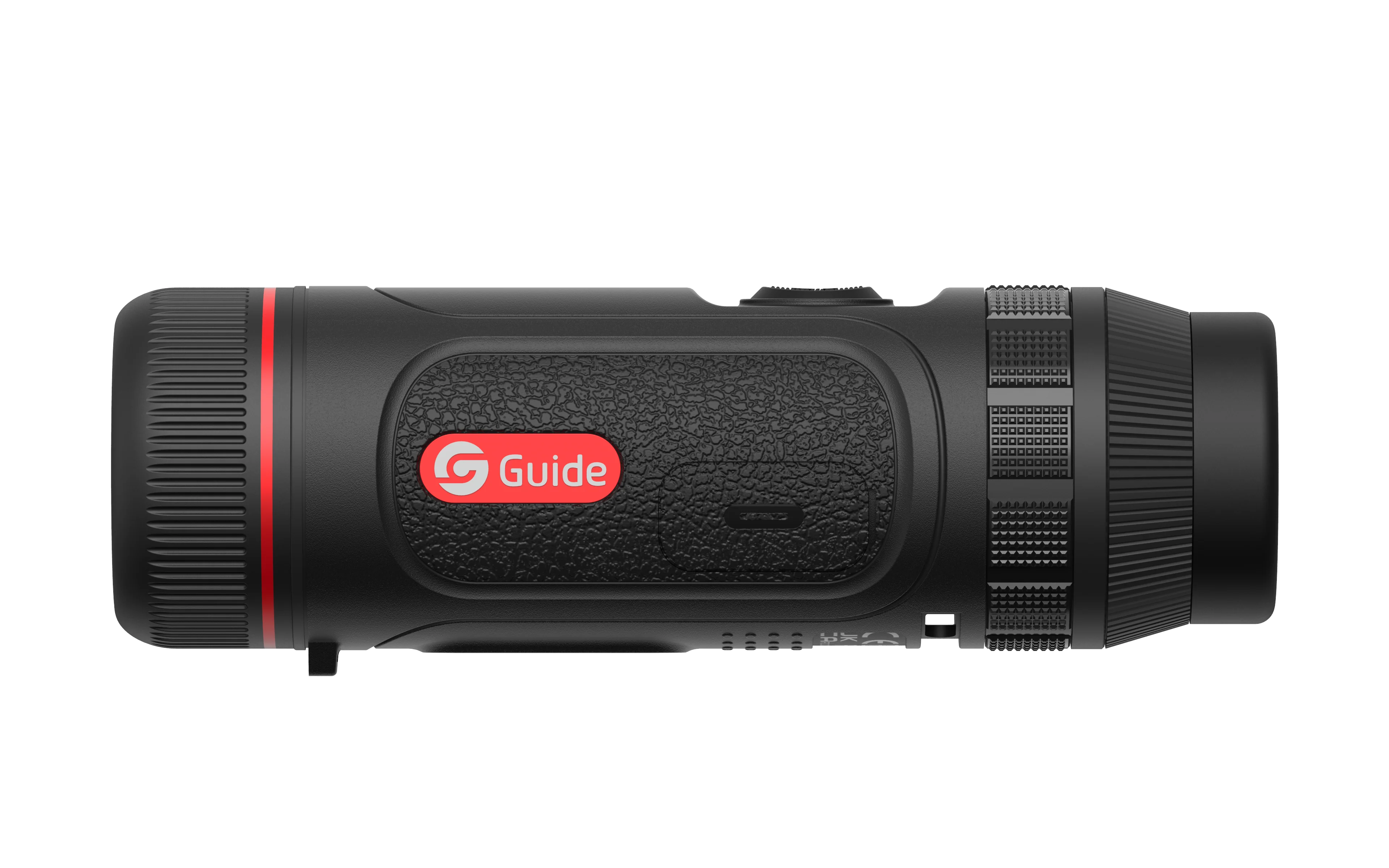

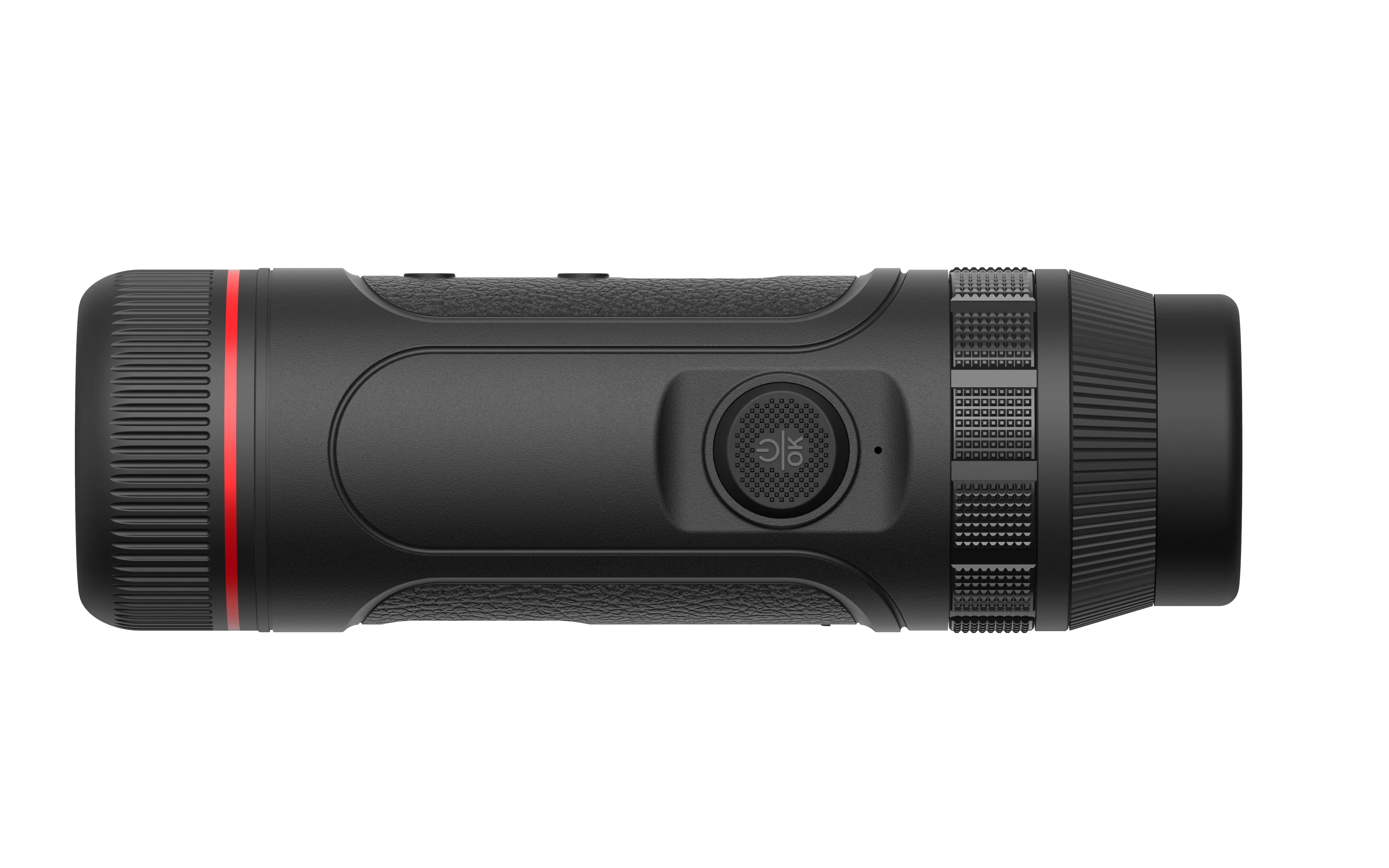

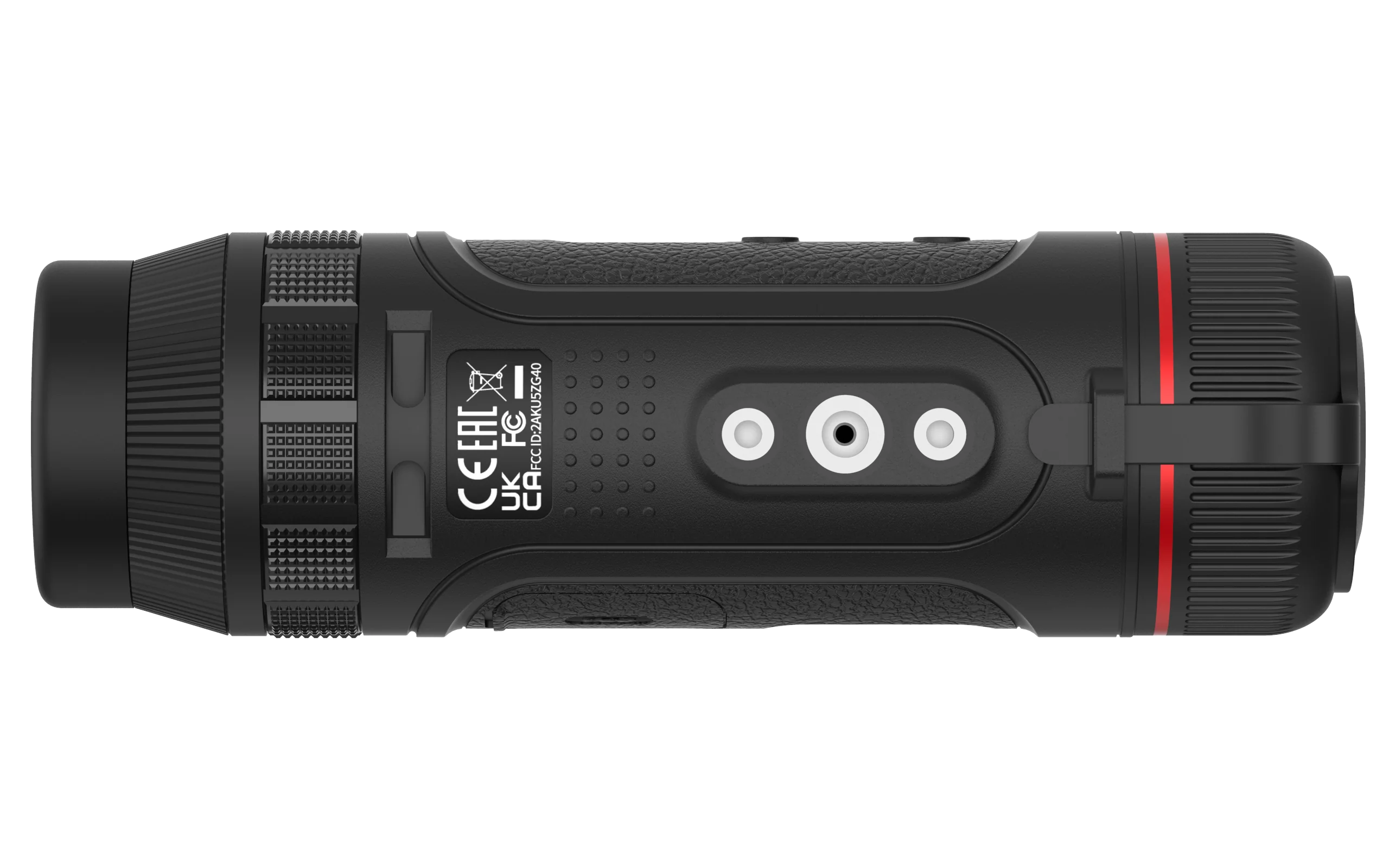

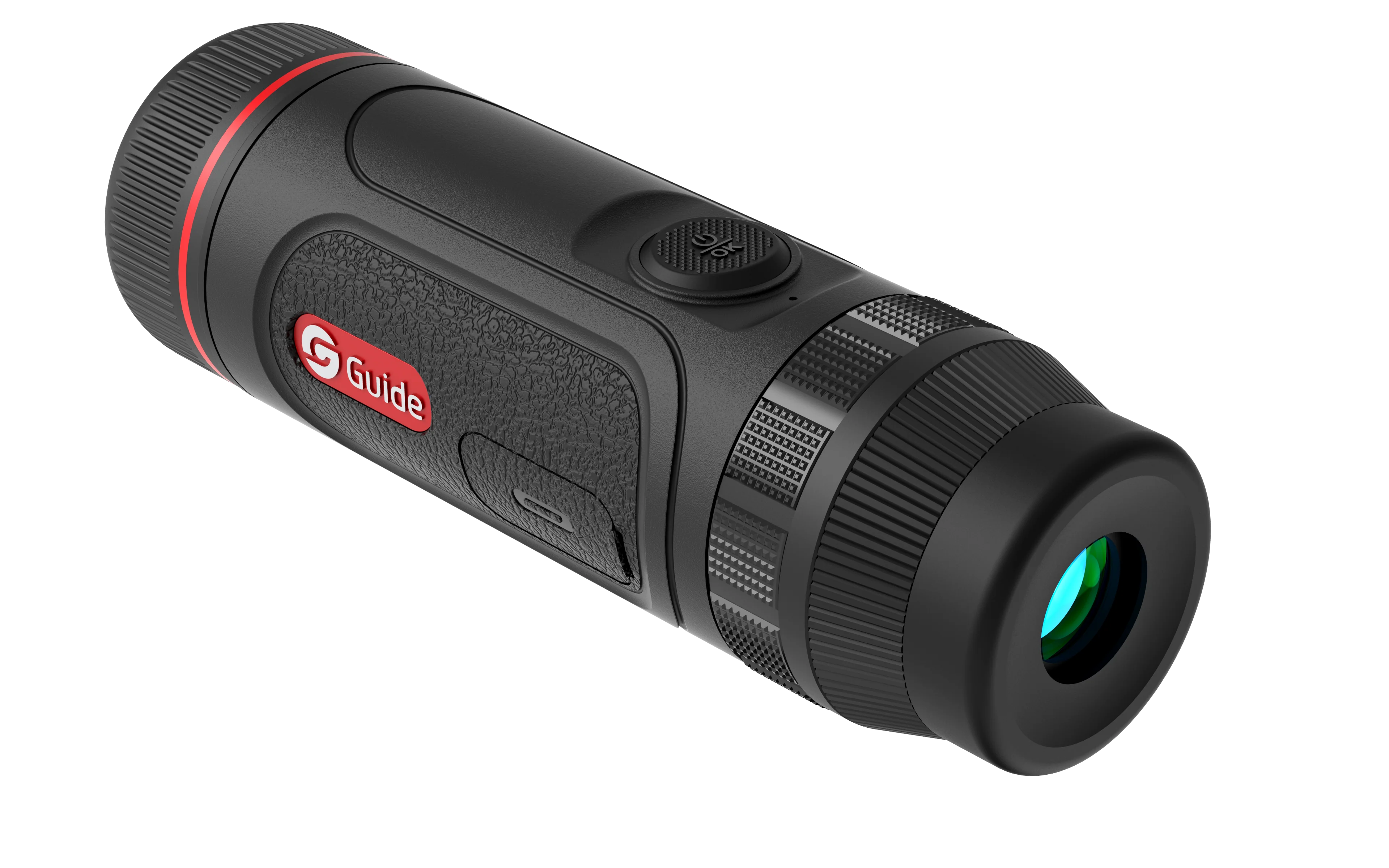

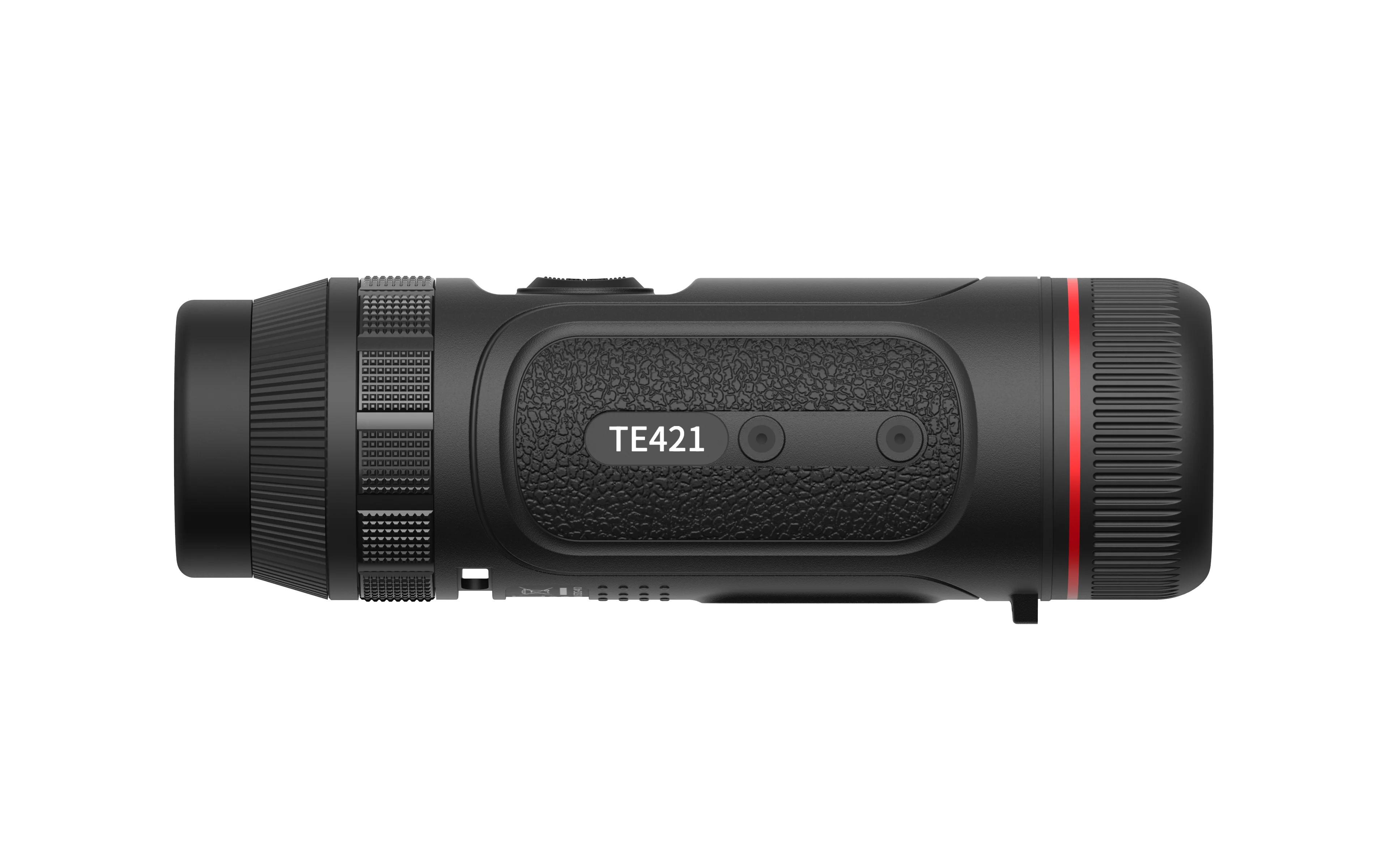

HomeStoreTE421 Thermal Monocular 1.9X 400x300 25mm
TE421 Thermal Monocular 1.9X 400x300 25mm
| Sensor |
| Type |
Uncooled VOx Infrared Detector, 8 to 14μm |
| Resolution |
400×300@12μm |
| NETD |
25mK |
| Frame rate |
50Hz |
| Lens |
| Objective lens |
25mm, F1.0 |
| Field of view |
11°×8.2° |
| FOV m@100m |
19×14 |
| Magnification |
1.9x~7.6x |
| Detection range |
1300m/1400yd |
| Focus |
Manual |
| Display |
| Display type |
0.32'' AMOLED 800×600 |
| Color palettes |
White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Eyepiece |
Eye relief: 25mm; Diopter: -5 to +5; Zoom: 14x |
| Hardware |
| WIFI |
2.4G, 5G |
| Interface |
USB Type-C, Support charging |
| Others |
Microphone, Bluetooth |
| System |
| Recording function |
Photo/Video (Audio recording included) |
| Memory capacity |
16GB |
| Power |
| Battery type |
Built-in battery |
| Operating time |
5 hours (Support 20W quick charging) |
| Environmental |
| Operating temp. |
-20°C to 50°C / -4°F to +122°F |
| Encapsulation |
IP67 |
| Physical |
| Weight (g/oz) |
295/11.11 |
| Size (mm/in) |
47×47×155/1.85×1.85×6.10 |
| Standard |
Device, Lens cover, Eye mask, Wrist strap, Quick charging adapter, USB Type-C cable, Quick use guide, Safety Information Manual, Warranty card |
| Optional |
Bluetooth remote control |
$329.70Original: $1,099.00
